CPU CoolerAIO Water Cooler

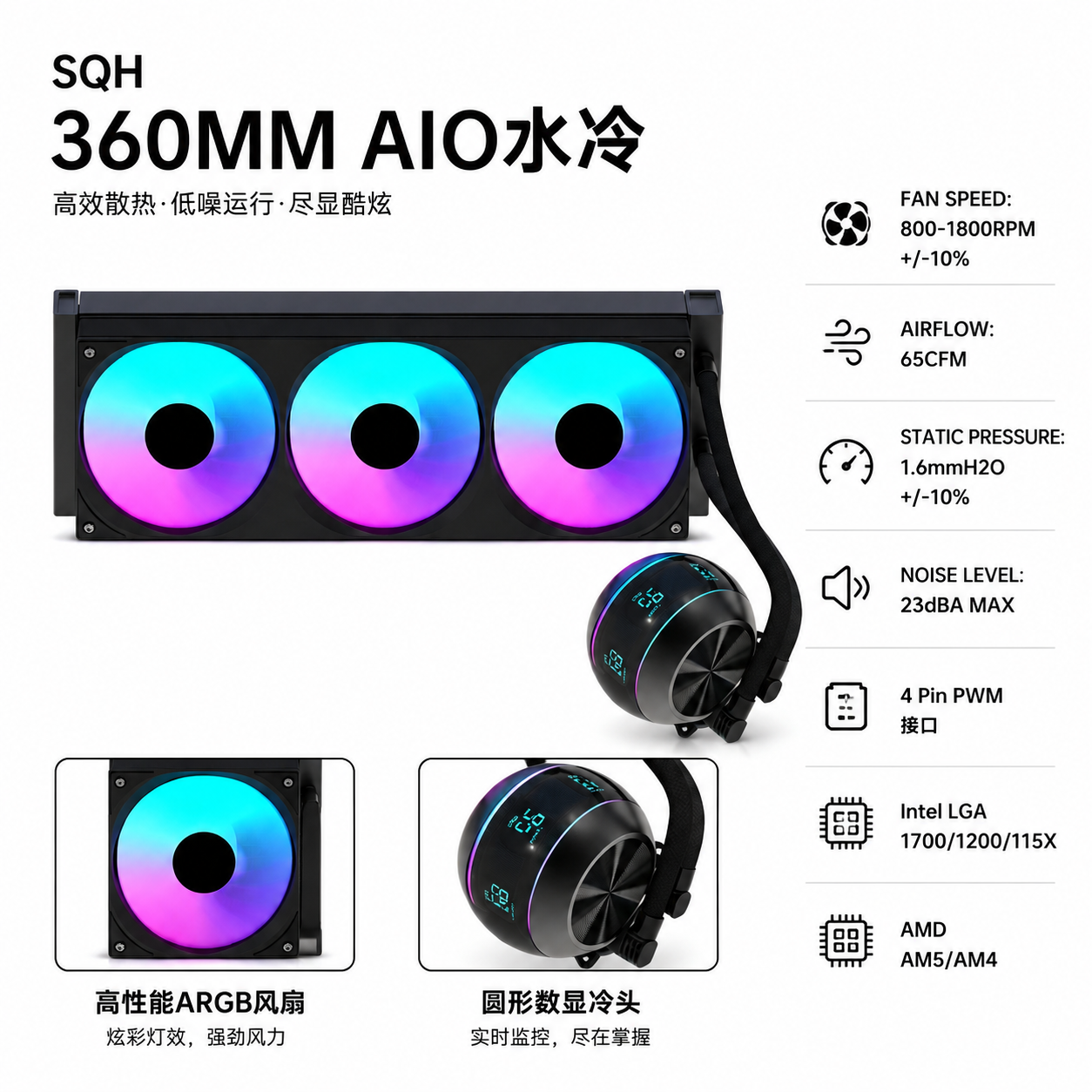

SQH-A04-360B AIO Water Cooler 360mm
360mm AIO Liquid Cooler, ARGB PWM Silent Fans, Premium Build Quality
Specifications
Fan Size360mm (3x 120mm)
Fan Speed800–1800 RPM
Pump Speed2400–3100 ±10% RPM
TDP300W
Noise Level23 dB (Max.)
Radiator Size396×120×27 mm
Pump Head72×72×60 mm
Tube Length390 mm
Socket (Intel)LGA 115X / 1700 / 1851 / 1366
Socket (AMD)AM3 / AM4 / AM5
LED LightingARGB (motherboard connectors)
Fan Connector2510-4Pin
Pump Connector2510-4Pin
Fan VoltageDC 12V
Fan Power2.6W (max)
Pump VoltageDC 12V/5V
Pump Power4.5W
Airflow65 CFM (max)
Air Pressure1.6 mmH2O (max)
Fan BearingHydraulic
MOQ500 pcs
CertificationsCE, FCC, RoHS
Detailed Specifications
Fan Size360mm (3x 120mm)
Fan Speed800–1800 RPM
Pump Speed2400–3100 ±10% RPM
TDP300W
Noise Level23 dB (Max.)
Radiator Size396×120×27 mm
Pump Head72×72×60 mm
Tube Length390 mm
Socket (Intel)LGA 115X / 1700 / 1851 / 1366
Socket (AMD)AM3 / AM4 / AM5
LED LightingARGB (motherboard connectors)
Fan Connector2510-4Pin
Pump Connector2510-4Pin
Fan VoltageDC 12V
Fan Power2.6W (max)
Pump VoltageDC 12V/5V
Pump Power4.5W
Airflow65 CFM (max)
Air Pressure1.6 mmH2O (max)
Fan BearingHydraulic
MOQ500 pcs
CertificationsCE, FCC, RoHS
Related Products

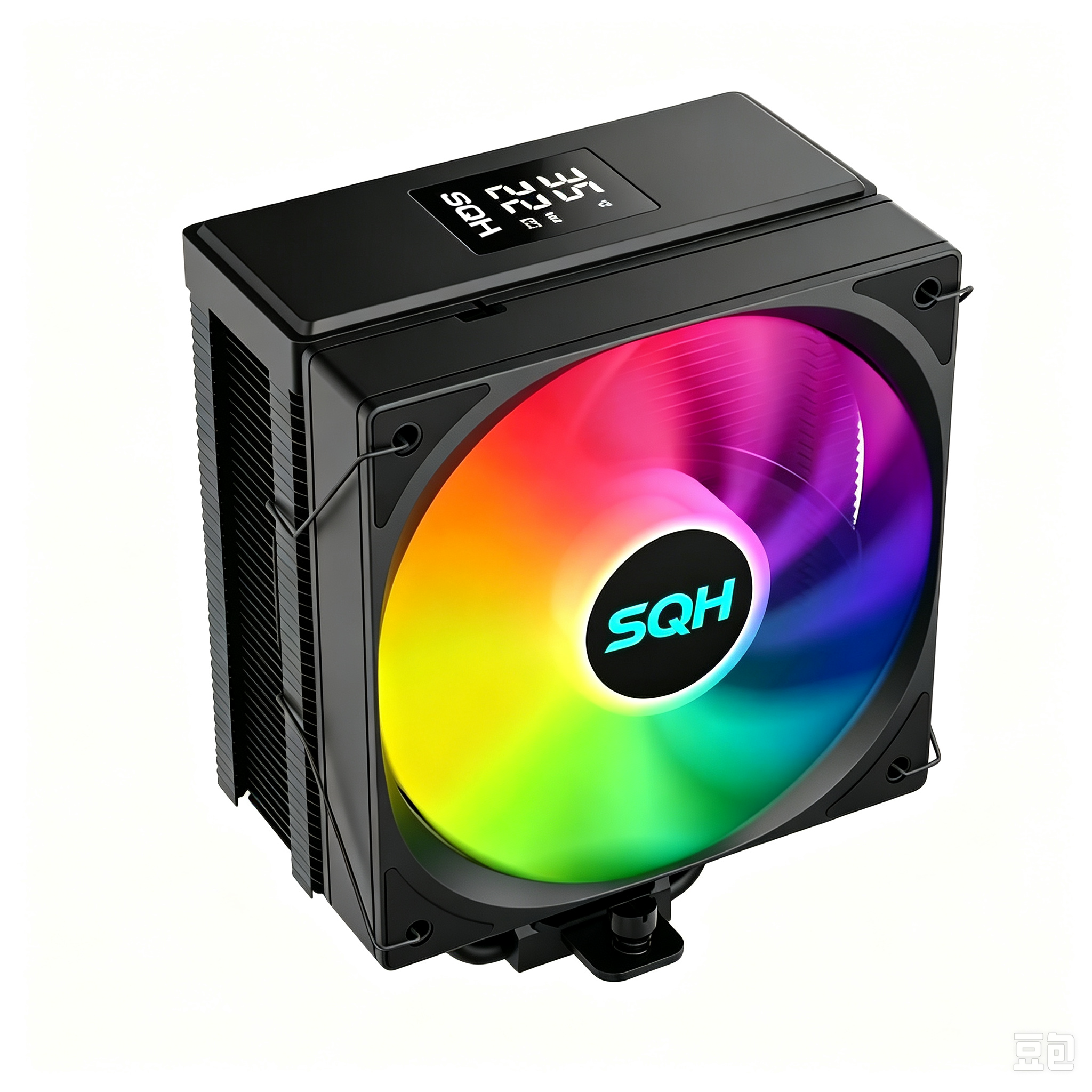

SQH-B001-12025 4-Heatpipe Digital Display
4 Heatpipe CPU Air Cooler with Digital Display Top Cover, 120mm ARGB PWM Fan, TDP 180W

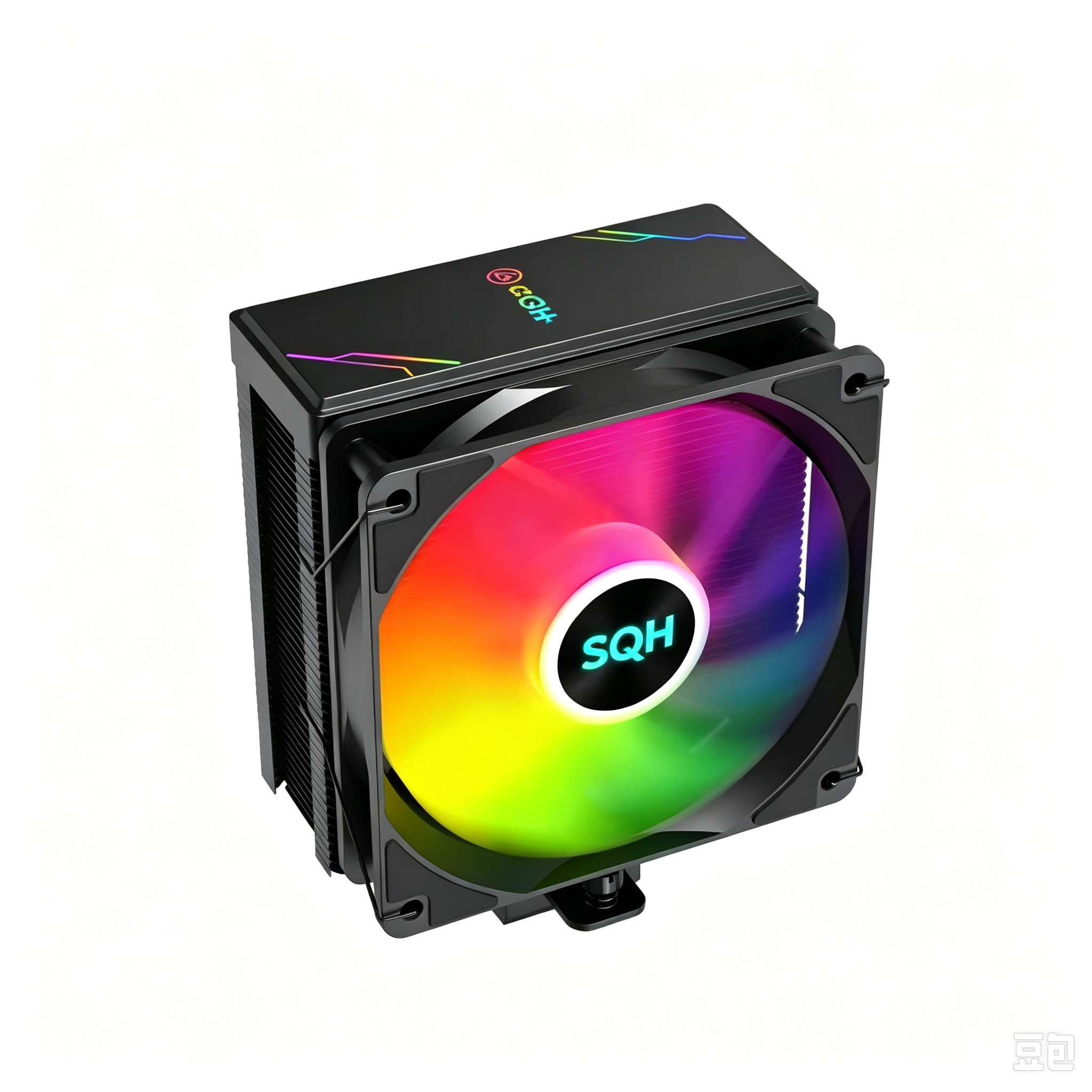

SQH-B002-12025 4-Heatpipe RGB Top Cover
4 Heatpipe CPU Air Cooler with RGB Light Strip Top Cover, 120mm ARGB PWM Fan, TDP 180W

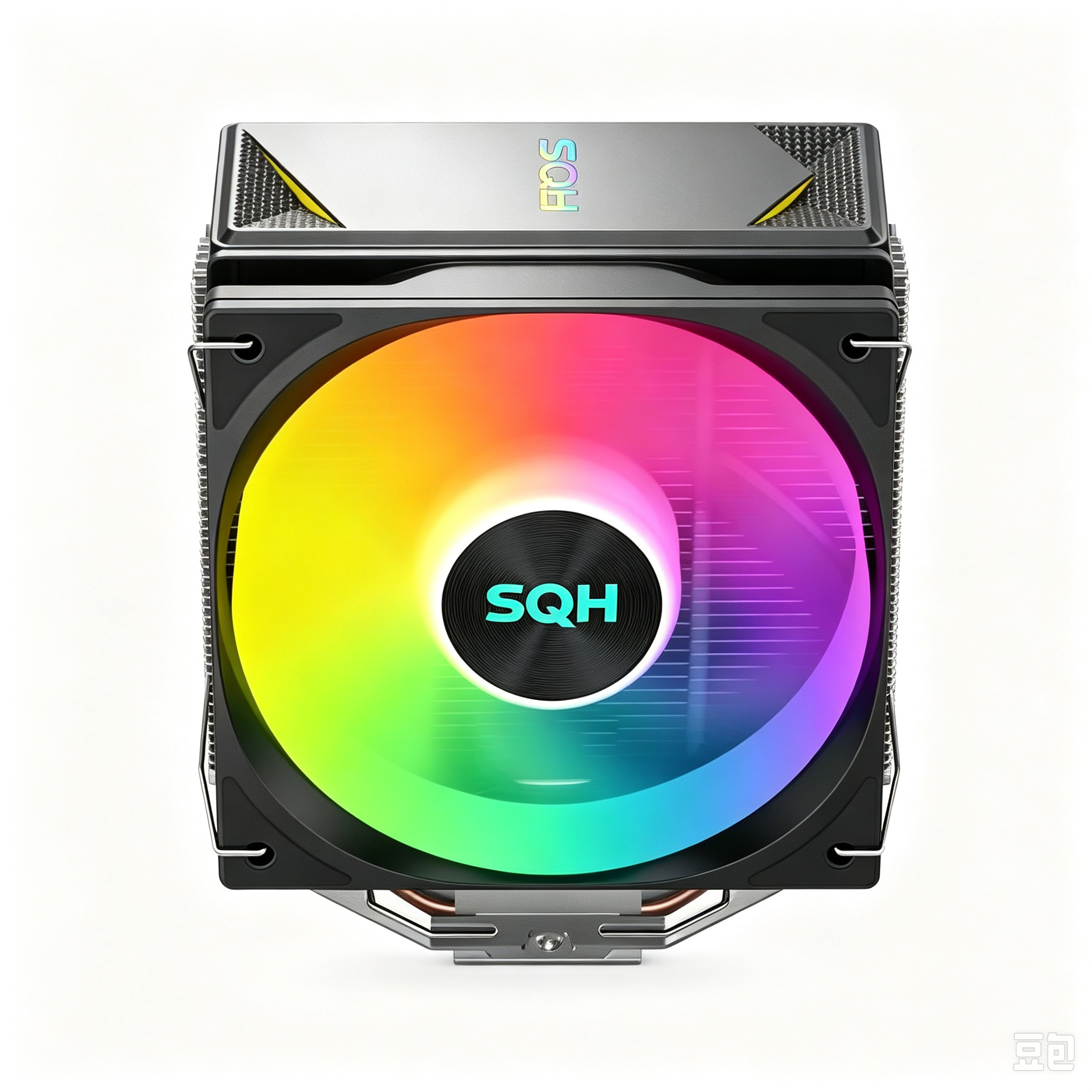

SQH-B003-12025 4-Heatpipe LOGO Top Cover
4 Heatpipe CPU Air Cooler with LOGO Top Cover, 120mm ARGB PWM Fan, TDP 180W

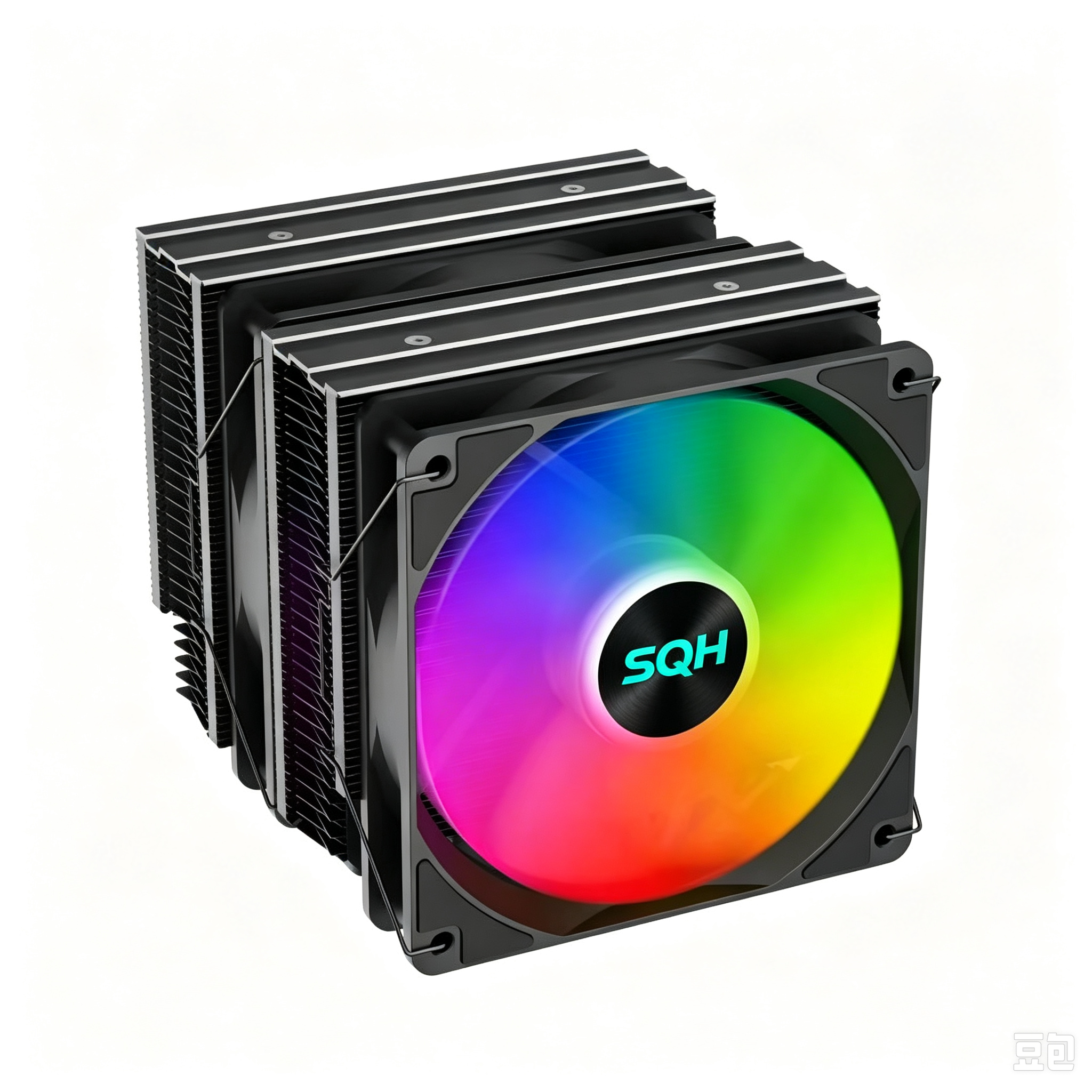

SQH-B004-12025*2 Dual-Tower 6-Heatpipe
