CPU CoolerAIO Water Cooler

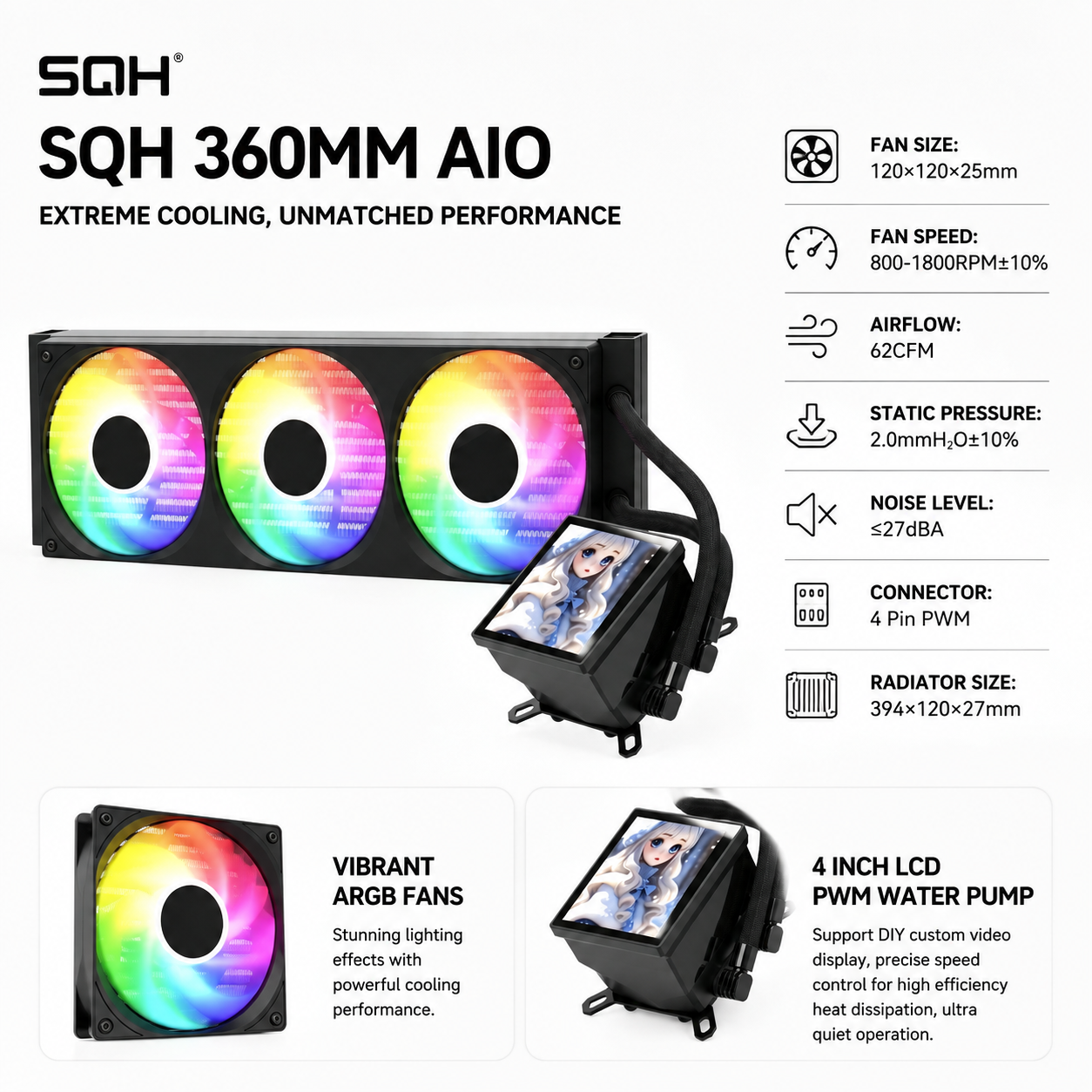

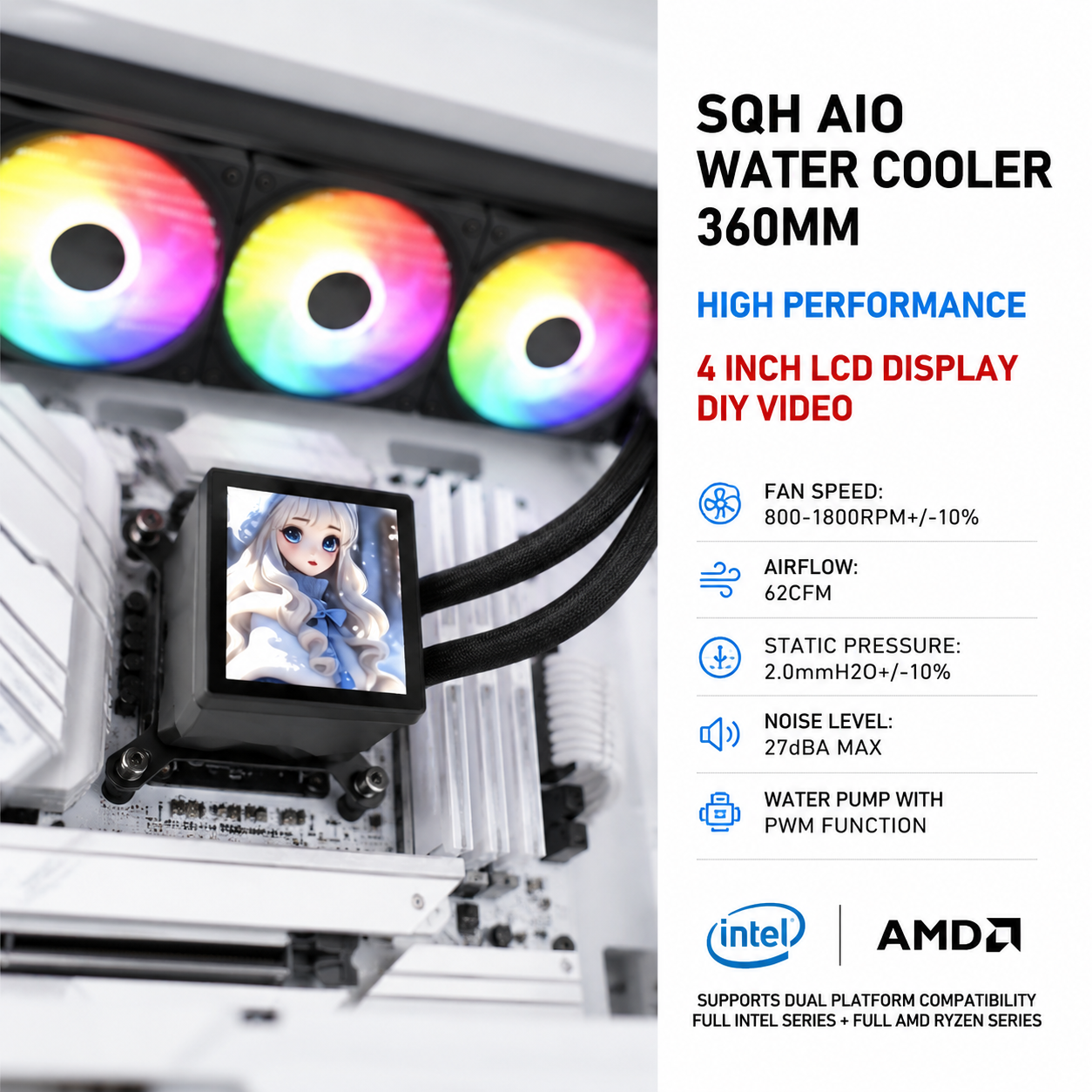

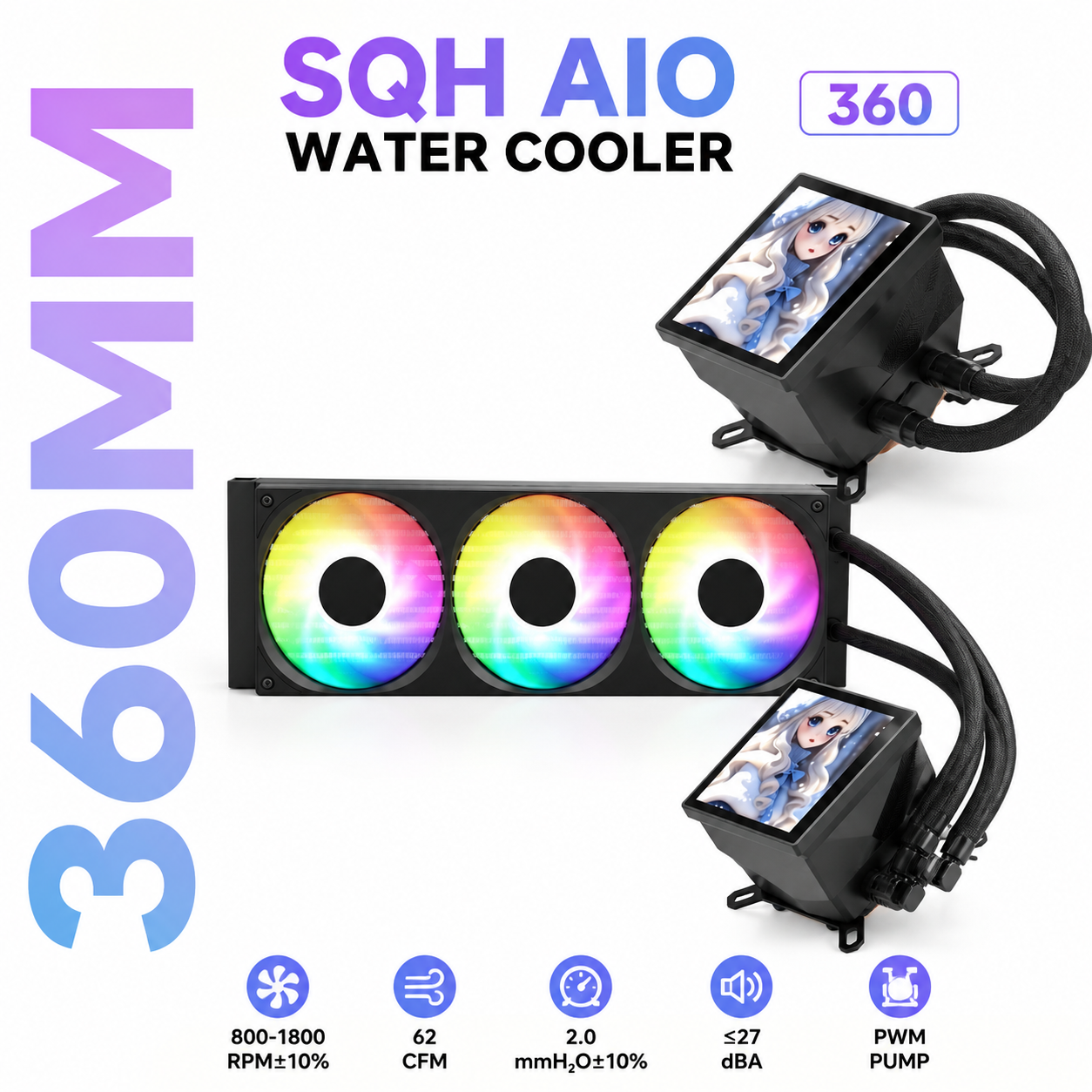

SQH-A02-360B AIO Water Cooler 360mm LCD
360mm AIO with 3.95" IPS LCD Screen, ARGB PWM Silent Fans, DIY Video Upload — Flagship Model
Specifications
Fan Size360mm (3x 120mm)
Fan Speed800–1800 RPM
Pump Speed2400–3100 ±10% RPM
TDP300W
Noise Level23 dB (Max.)
Radiator Size396×120×27 mm
Pump Head83×83×69 mm
Tube Length390 mm
Screen Size3.95 inches
Screen TypeIPS
Screen Resolution480×480
Screen InterfaceUSB 2.0 (9-pin)
Socket (Intel)LGA 115X / 1700 / 1851 / 1366
Socket (AMD)AM3 / AM4 / AM5
LED LightingARGB (motherboard connectors)
Fan Connector2510-4Pin
Pump Connector2510-4Pin
Fan VoltageDC 12V
Fan Power2.6W (max)
Pump VoltageDC 12V/5V
Pump Power4.5W
Airflow65 CFM (max)
Air Pressure1.6 mmH2O (max)
Fan BearingHydraulic
MOQ500 pcs
CertificationsCE, FCC, RoHS
Detailed Specifications
Fan Size360mm (3x 120mm)
Fan Speed800–1800 RPM
Pump Speed2400–3100 ±10% RPM
TDP300W
Noise Level23 dB (Max.)
Radiator Size396×120×27 mm
Pump Head83×83×69 mm
Tube Length390 mm
Screen Size3.95 inches
Screen TypeIPS
Screen Resolution480×480
Screen InterfaceUSB 2.0 (9-pin)
Socket (Intel)LGA 115X / 1700 / 1851 / 1366
Socket (AMD)AM3 / AM4 / AM5
LED LightingARGB (motherboard connectors)
Fan Connector2510-4Pin
Pump Connector2510-4Pin
Fan VoltageDC 12V
Fan Power2.6W (max)
Pump VoltageDC 12V/5V
Pump Power4.5W
Airflow65 CFM (max)
Air Pressure1.6 mmH2O (max)
Fan BearingHydraulic
MOQ500 pcs
CertificationsCE, FCC, RoHS
