CPU CoolerAIO Water Cooler

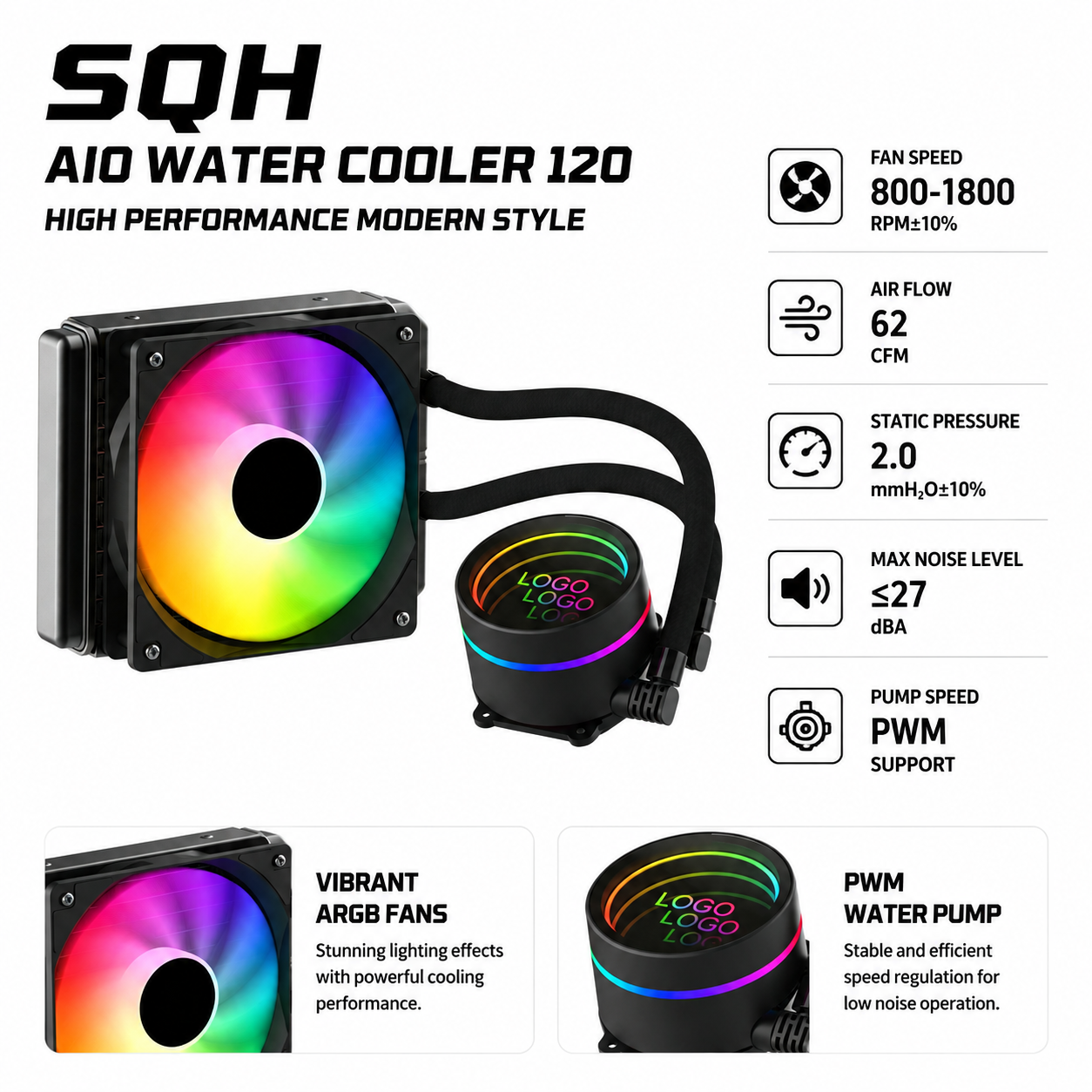

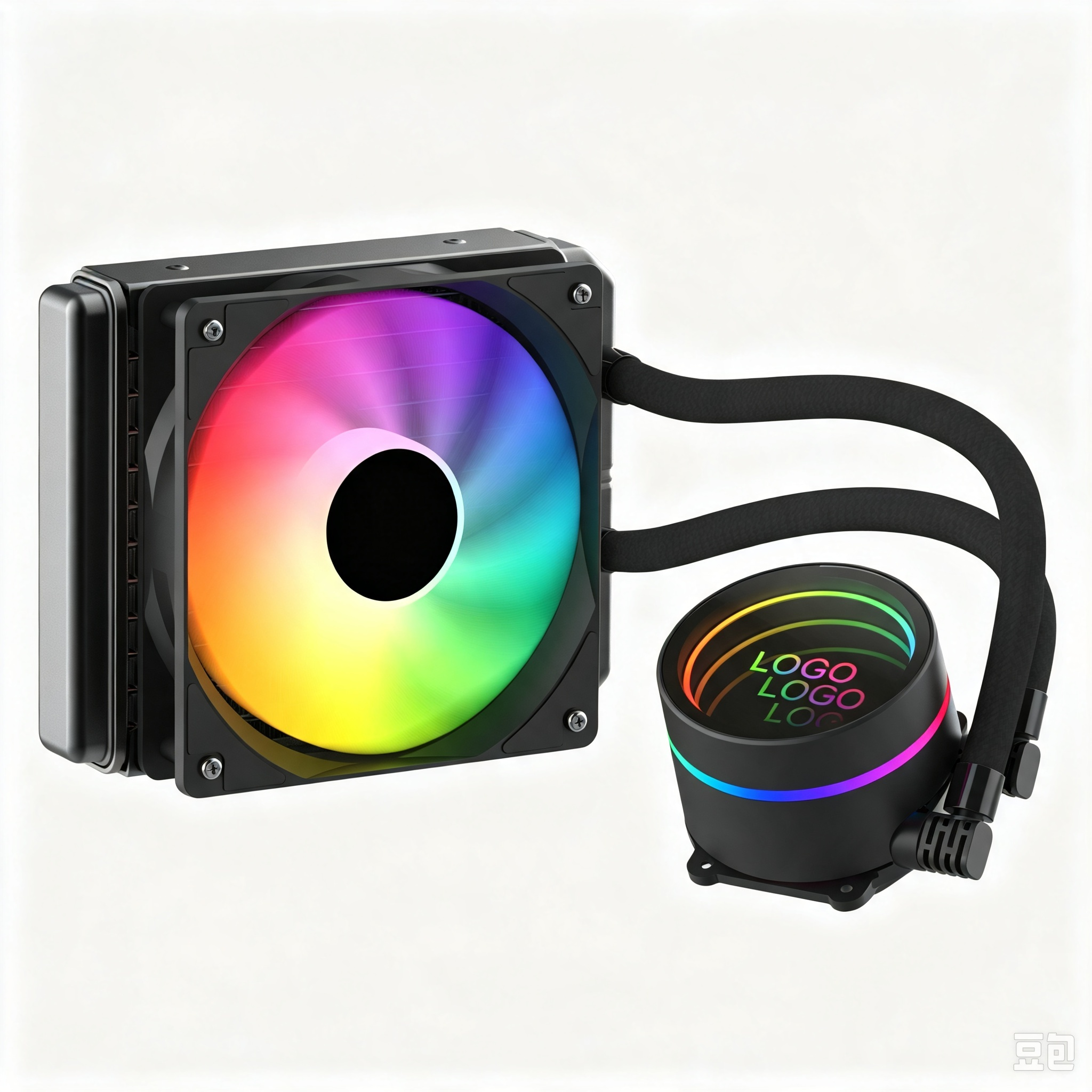

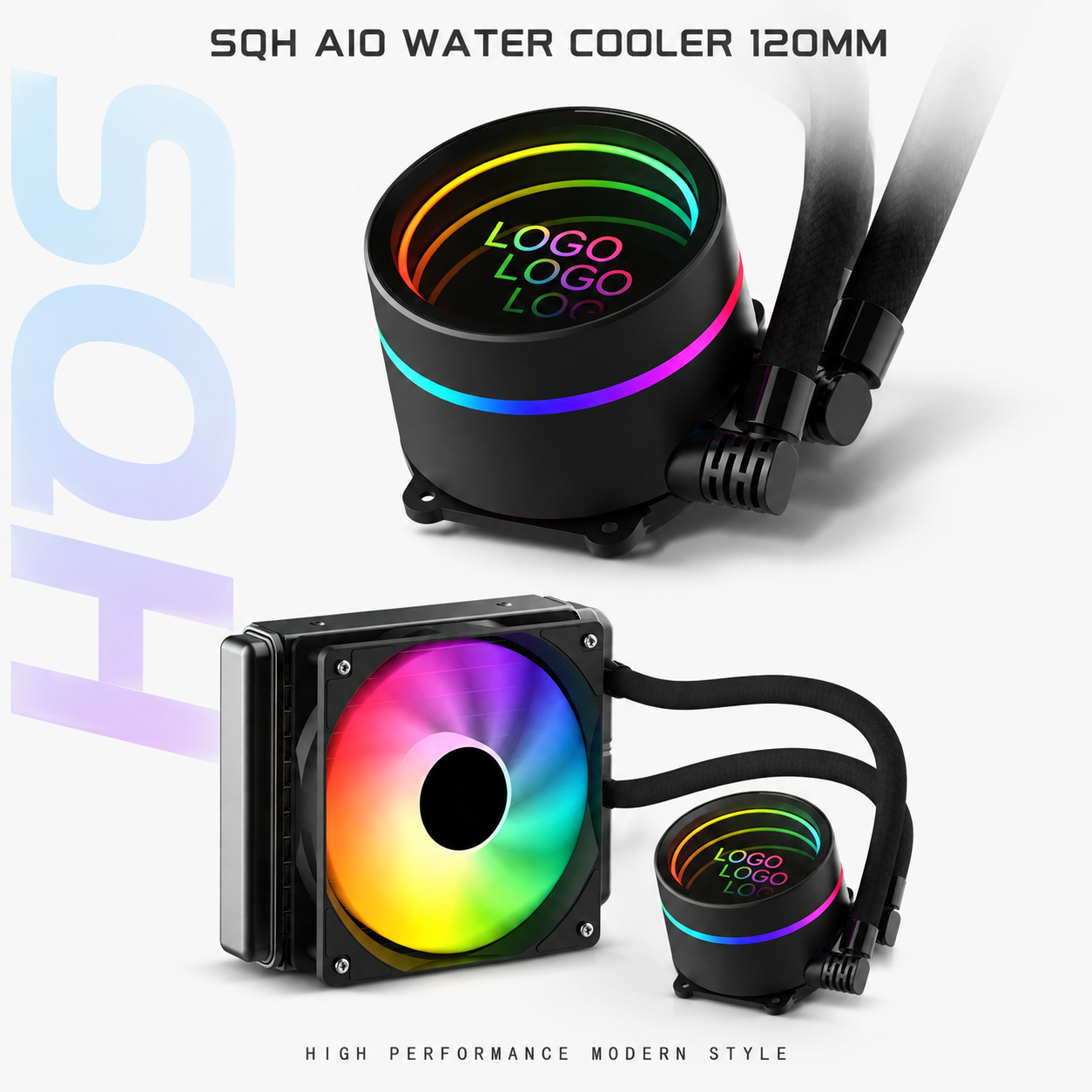

SQH-A01-120B AIO Water Cooler 120mm
120mm AIO Liquid Cooler, Minimalist Round Cold Head, PWM Fan & PWM Pump
Specifications
Fan Size120mm
Fan Speed800–1800 RPM
Pump Speed2400–3100 ±10% RPM
TDP150W
Noise Level23 dB (Max.)
Radiator Size154×120×27 mm
Pump Head72×72×54 mm
Tube Length320 mm
Socket (Intel)LGA 115X / 1700 / 1851 / 1366
Socket (AMD)AM3 / AM4 / AM5
LED LightingFixed RGB
Fan Connector2510-3Pin
Pump Connector2510-4Pin
Fan VoltageDC 12V
Fan Power3.7W (max)
Pump VoltageDC 12V/5V
Pump Power5W
Airflow62 CFM (max)
Air Pressure1.5 mmH2O (max)
Fan BearingHydraulic
MOQ500 pcs
CertificationsCE, FCC, RoHS
Detailed Specifications
Fan Size120mm
Fan Speed800–1800 RPM
Pump Speed2400–3100 ±10% RPM
TDP150W
Noise Level23 dB (Max.)
Radiator Size154×120×27 mm
Pump Head72×72×54 mm
Tube Length320 mm
Socket (Intel)LGA 115X / 1700 / 1851 / 1366
Socket (AMD)AM3 / AM4 / AM5
LED LightingFixed RGB
Fan Connector2510-3Pin
Pump Connector2510-4Pin
Fan VoltageDC 12V
Fan Power3.7W (max)
Pump VoltageDC 12V/5V
Pump Power5W
Airflow62 CFM (max)
Air Pressure1.5 mmH2O (max)
Fan BearingHydraulic
MOQ500 pcs
CertificationsCE, FCC, RoHS
